Environmental Sensor FeatherWing v1
Legacy Product
This is documentation for the Environmental Sensor FeatherWing v1, which has been superseded by the Environmental Sensor FeatherWing v2. The v2 version features the BME688 gas sensor with AI capabilities.

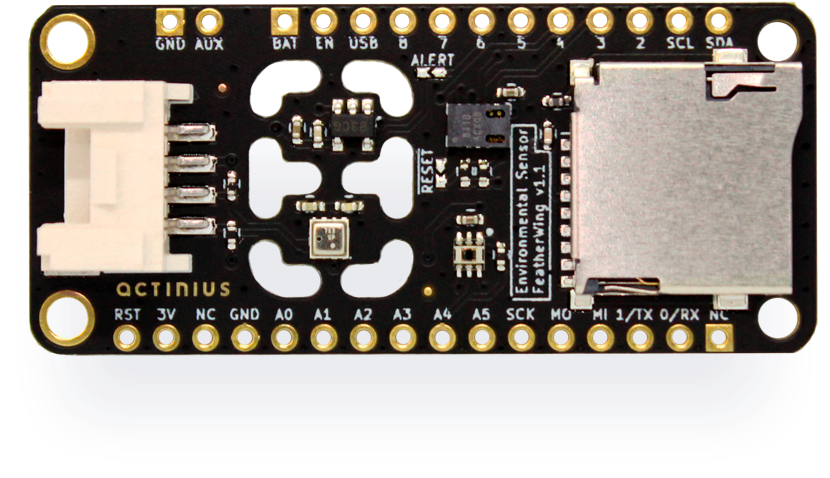

The Environmental Sensor FeatherWing v1 is a sensor expansion board designed to work with Feather-compatible boards like the Icarus IoT Board.
Sensors and Features
The board comes equipped with the following sensors:
- CCS811 - Gas Sensor (eCO2 and TVOC)
- BME280 - Environmental Sensor (Pressure, Humidity, Temperature)
- OPT3002 - Ambient Light Sensor
- SI7060 - Temperature Sensor
It also has support for:
- Micro SD Card over SPI
- Grove Connector for external I2C sensors
